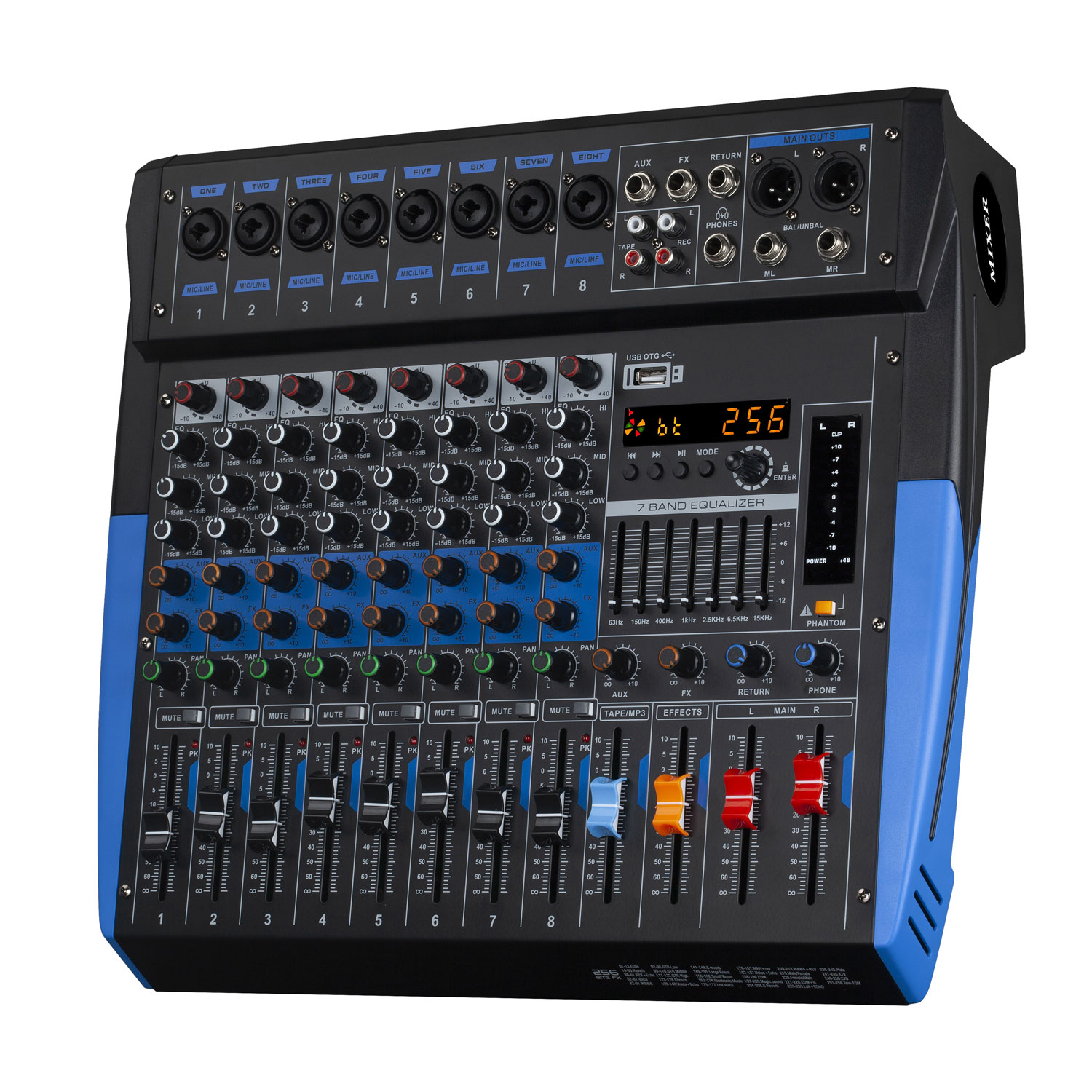

MD8

CN:21630

● 8-channel design, 8-channel MIC mono

●Each channel has 3 levels of parameter equalization, and each channel is switched by mute button

●1 set of stereo output, 1 way EFF effect adjustment

● Built-in 256 kinds of DSP digital effects, built-in USB player, MP3 playback, USB in-line recording, built-in Bluetooth 5.0 reception and playback, USB audio sound card (connected to computer) transmit the sound played by the computer to the mixer

●Each channel has built-in 48V fantasy power supply, the main output 7-band equalizer, USB and MP3 can be adjusted all the way

● LED level light for each input channel to display signal status, smooth high-quality 100MM stroke fader

Technical parameters:

Input channels: 8 channels

Number of outputs: 1

Phantom Power: 48V

Signal-to-noise ratio: >90dB

Total Harmonic Distortion: 0.03%

Maximum Input Level: 22dB

Input Sensitivity MIC Input: 60dB LINE Input: 20dB

Equalization: Total output of seven segments Diagram Equalization adjustable Height: 12KHz/±15dB

Medium: 250Hz/-8KHz/+15dB Low: 80Hz/±15dB

Frequency Response: 20Hz-20KHz (+3dB)

Line input: Gain range from 10dB to +20dB

Power supply: 100-240V

Headphone Maximum Input Level: 19dBu/150Ω (+25dBm)

Maximum Output Level: 19dBu (1kwTHD=0.5%)

Product size (length, width and height): 400mm*345mm*60mm

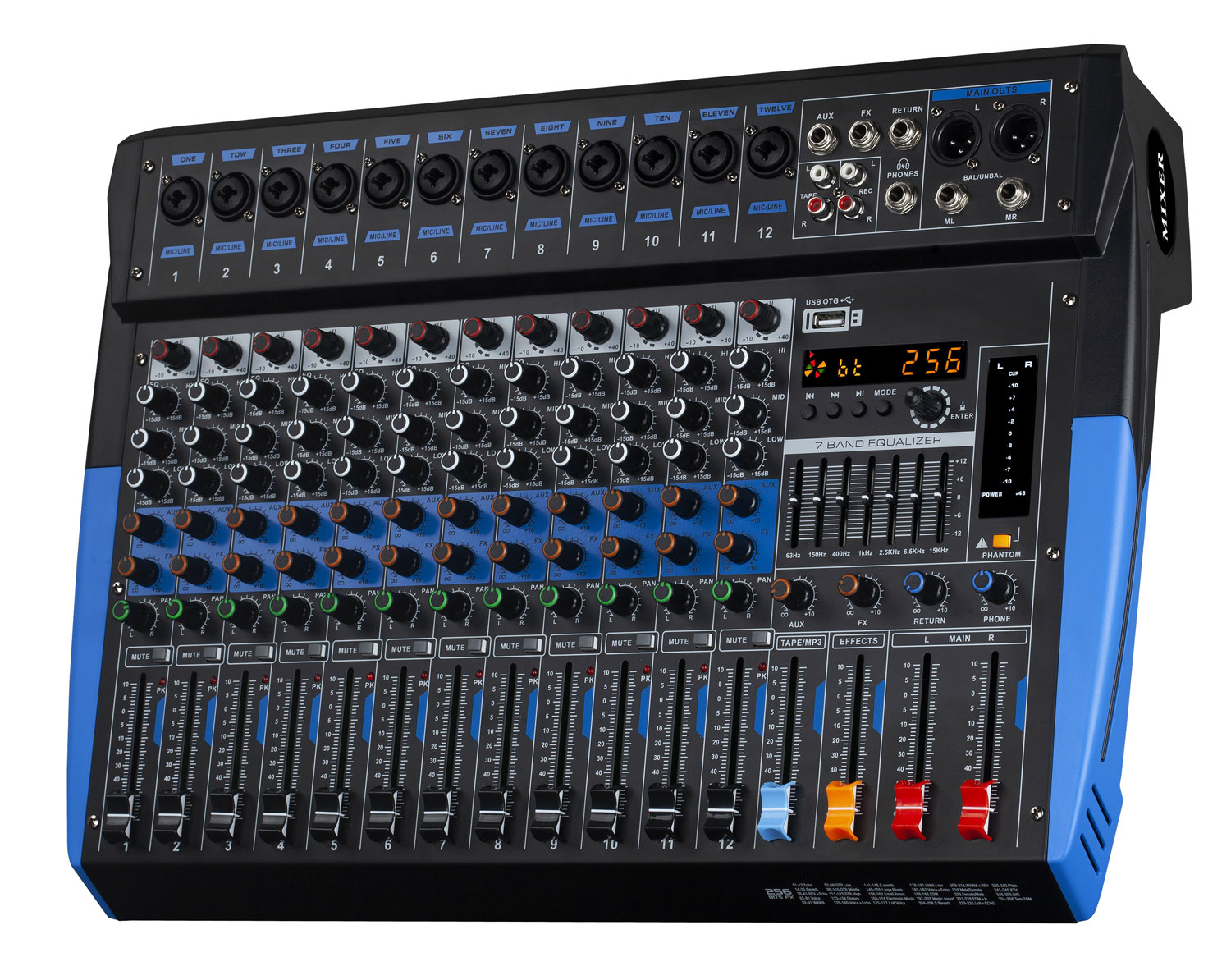

MD12

CN:27810

● 12-channel design, 12-channel MIC mono

●Each channel has 3 levels of parameter equalization, and each channel is switched by mute button

●1 set of stereo output, 1 way EFF effect adjustment

● Built-in 256 kinds of DSP digital effects, built-in USB player, MP3 playback, USB in-line recording, built-in Bluetooth 5.0 reception and playback, USB audio sound card (connected to computer) transmit the sound played by the computer to the mixer

●Each channel has built-in 48V fantasy power supply, the main output 7-band equalizer, USB and MP3 can be adjusted all the way

● LED level light for each input channel to display signal status, smooth high-quality 100MM stroke fader

Technical parameters:

Input channels: 12 channels

Number of outputs: 1

Phantom Power: 48V

Signal-to-noise ratio: >90dB

Total Harmonic Distortion: 0.03%

Maximum Input Level: 22dB

Input Sensitivity MIC Input: 60dB LINE Input: 20dB

Equalization: Total output of seven segments Diagram Equalization adjustable Height: 12KHz/±15dB

Medium: 250Hz/-8KHz/+15dB Low: 80Hz/±15dB

Frequency Response: 20Hz-20KHz (+3dB)

Line input: Gain range from 10dB to +20dB

Power supply: 100-240V

Headphone Maximum Input Level: 19dBu/150Ω (+25dBm)

Maximum Output Level: 19dBu (1kwTHD=0.5%)

Product size (length, width and height): 510mm*345mm*60mm

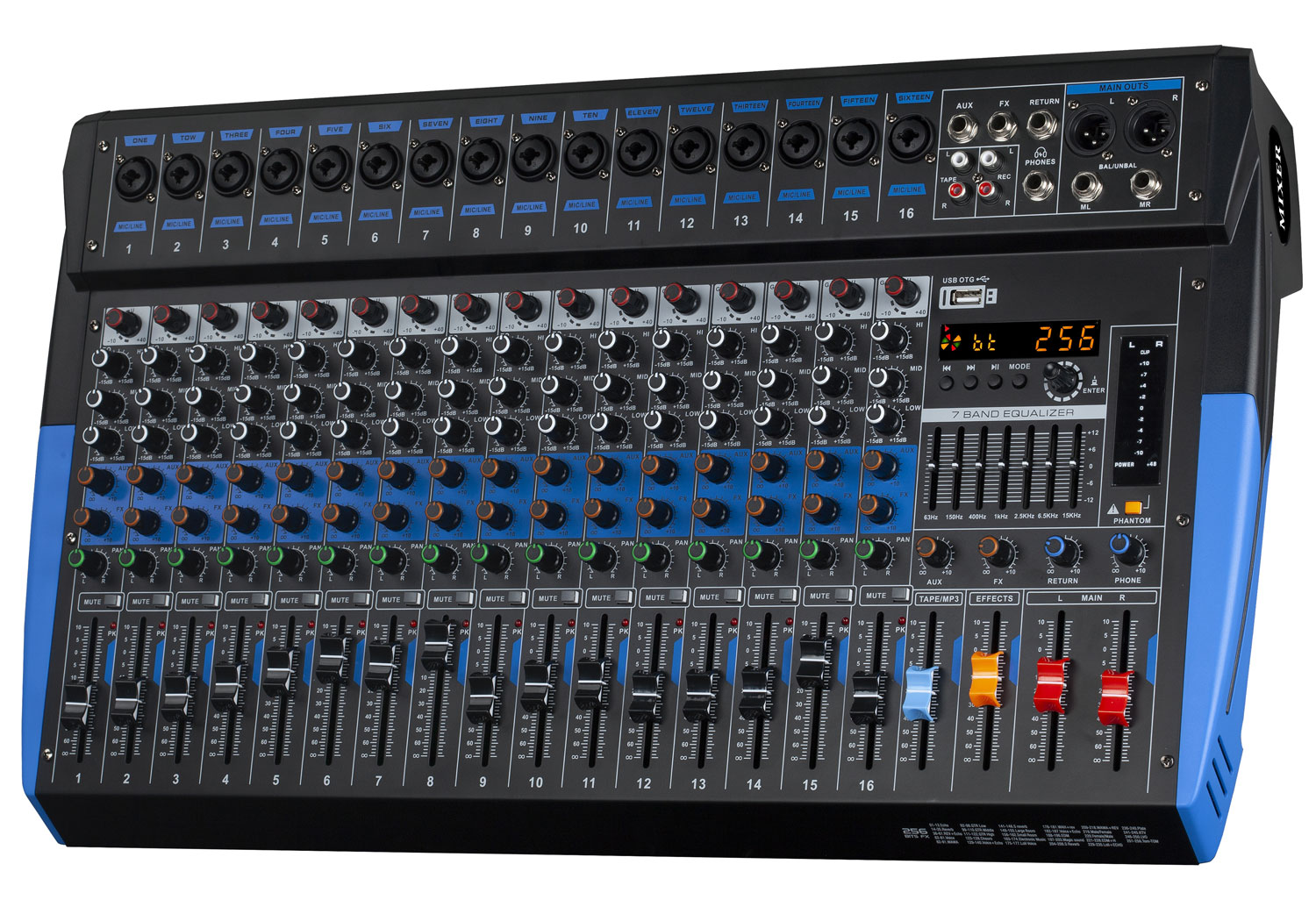

MD16

CN:33990

● 16-channel design, 16-channel MIC mono

●Each channel has 3 levels of parameter equalization, and each channel is switched by mute button

●1 set of stereo output, 1 way EFF effect adjustment

● Built-in 256 kinds of DSP digital effects, built-in USB player, MP3 playback, USB in-line recording, built-in Bluetooth 5.0 reception and playback, USB audio sound card (connected to computer) transmit the sound played by the computer to the mixer

●Each channel has built-in 48V fantasy power supply, the main output 7-band equalizer, USB and MP3 can be adjusted all the way

● LED level light for each input channel to display signal status, smooth high-quality 100MM stroke fader

Technical parameters:

Input channels: 16 channels

Number of outputs: 1

Phantom Power: 48V

Signal-to-noise ratio: >90dB

Total Harmonic Distortion: 0.03%

Maximum Input Level: 22dB

Input Sensitivity MIC Input: 60dB LINE Input: 20dB

Equalization: Total output of seven segments Diagram Equalization adjustable Height: 12KHz/±15dB

Medium: 250Hz/-8KHz/+15dB Low: 80Hz/±15dB

Frequency Response: 20Hz-20KHz (+3dB)

Line input: Gain range from 10dB to +20dB

Power supply: 100-240V

Headphone Maximum Input Level: 19dBu/150Ω (+25dBm)

Maximum Output Level: 19dBu (1kwTHD=0.5%)

Product size (length, width and height): 620mm*345mm*60mm
