PSM

Functional characteristics of the series sequencer

1. Panel color: High grade brushed black

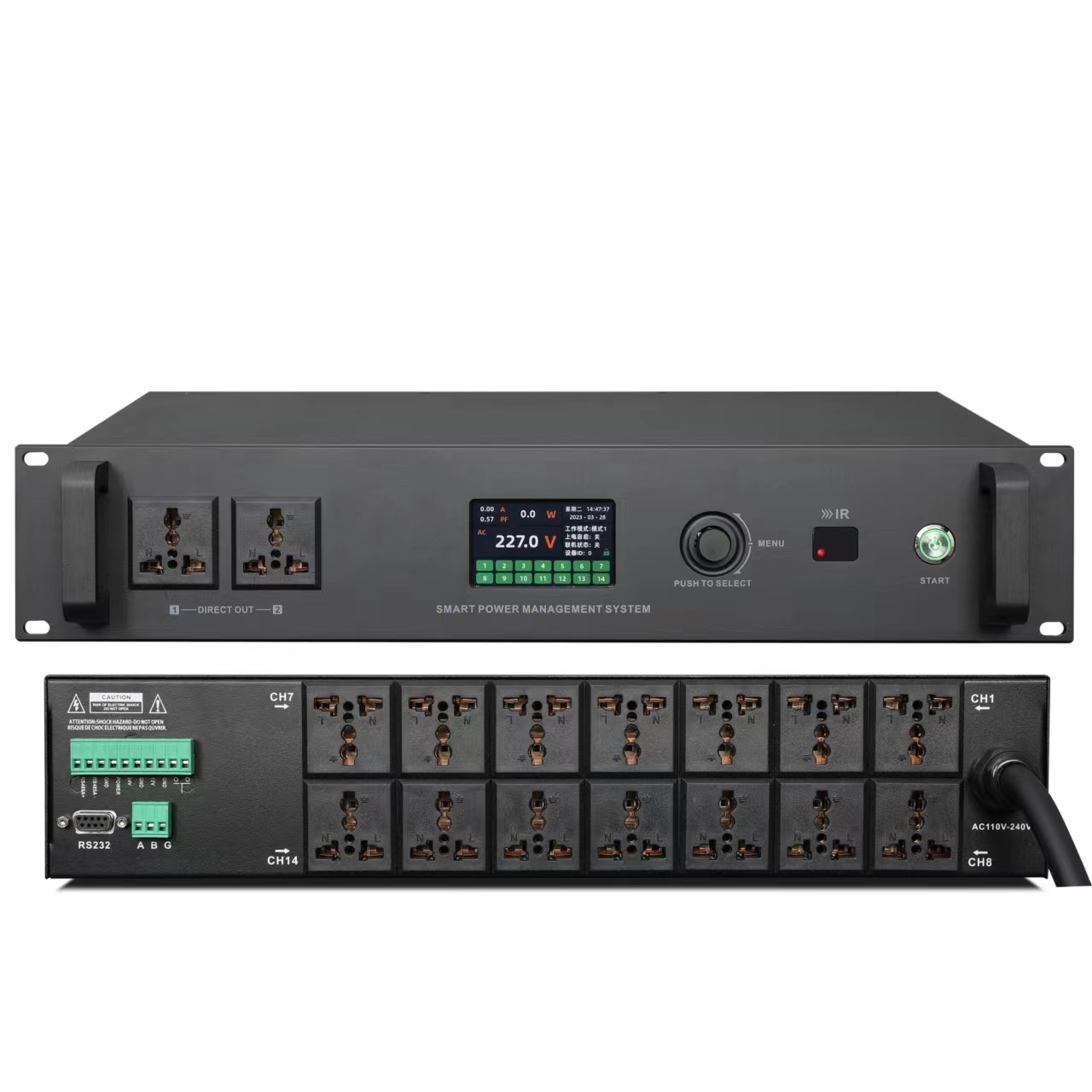

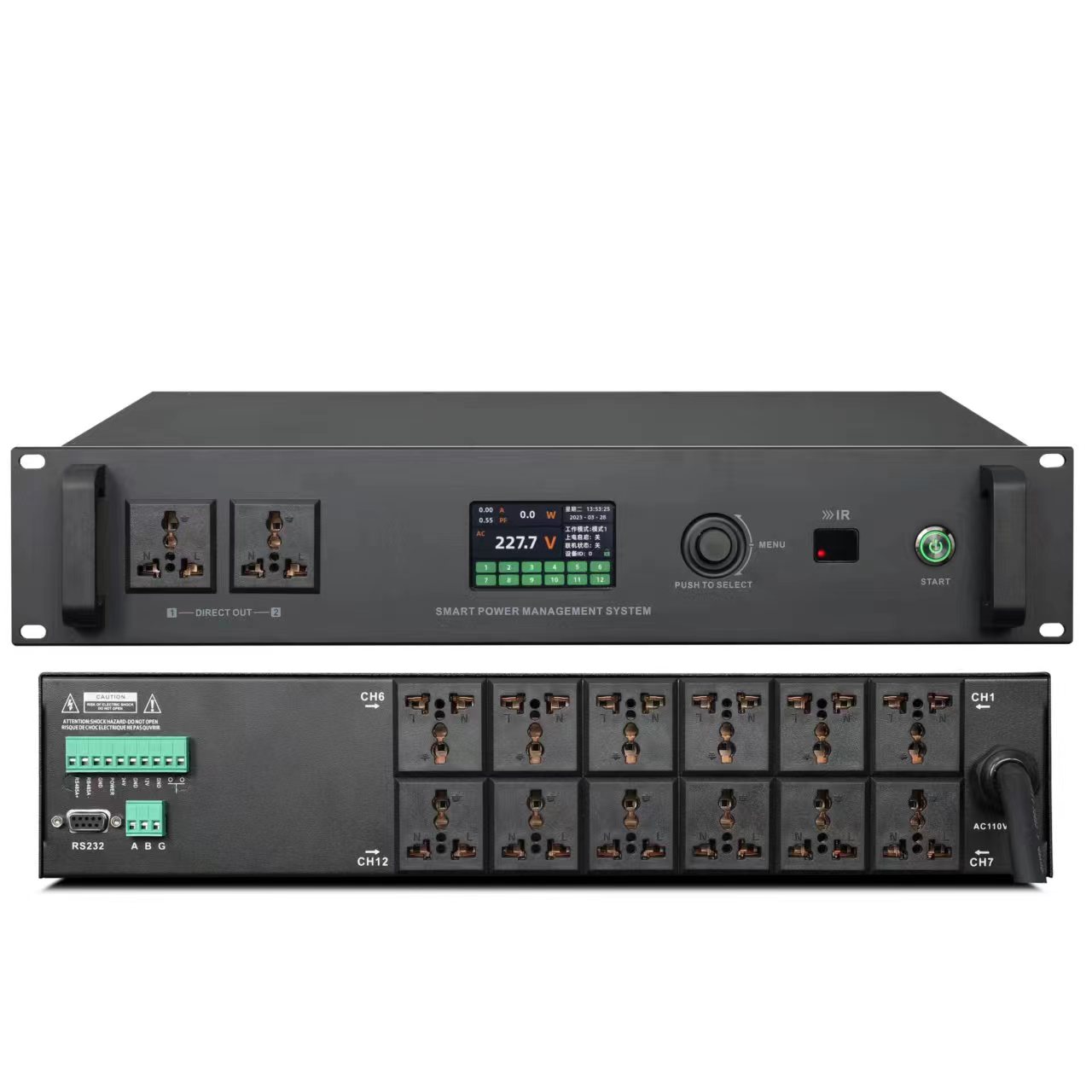

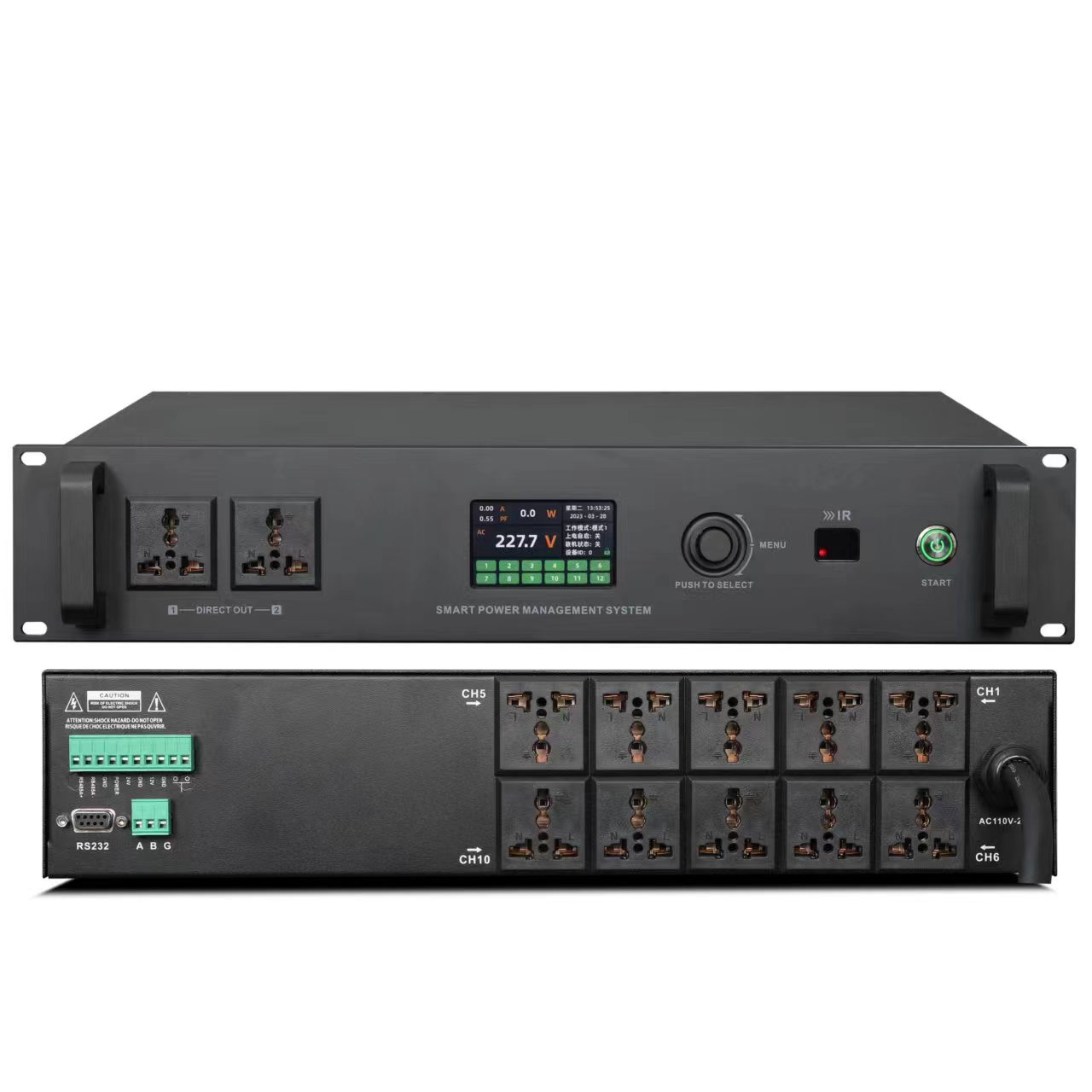

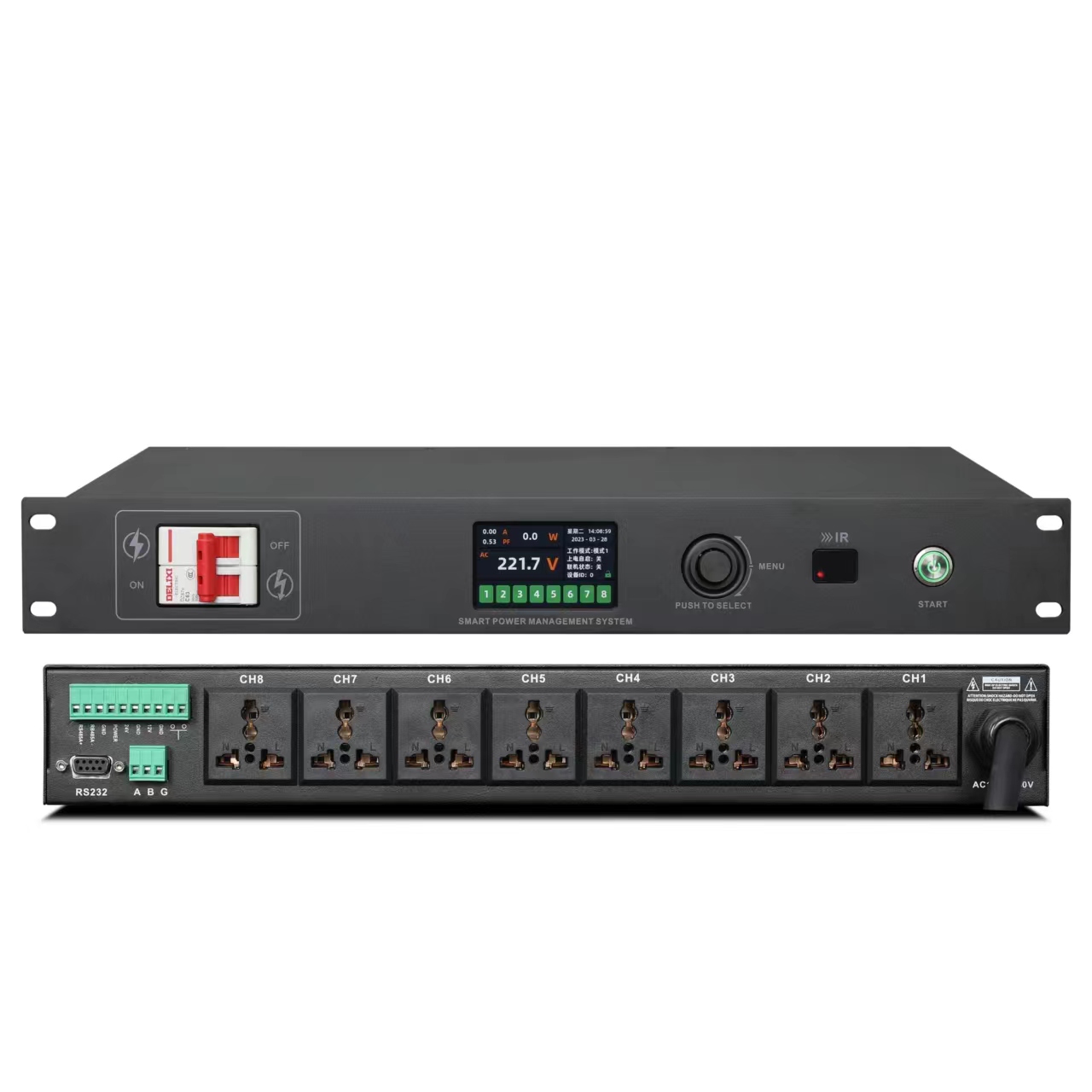

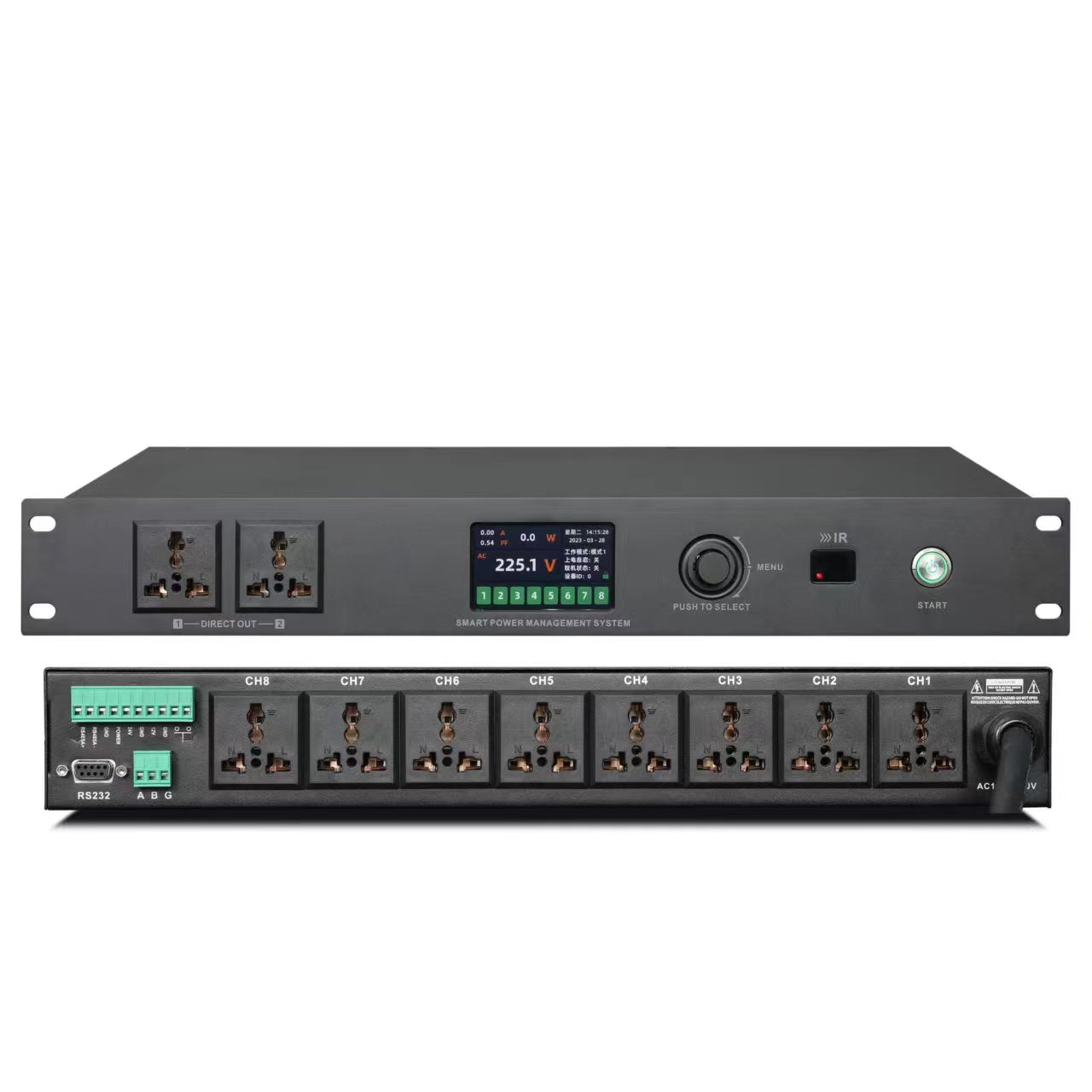

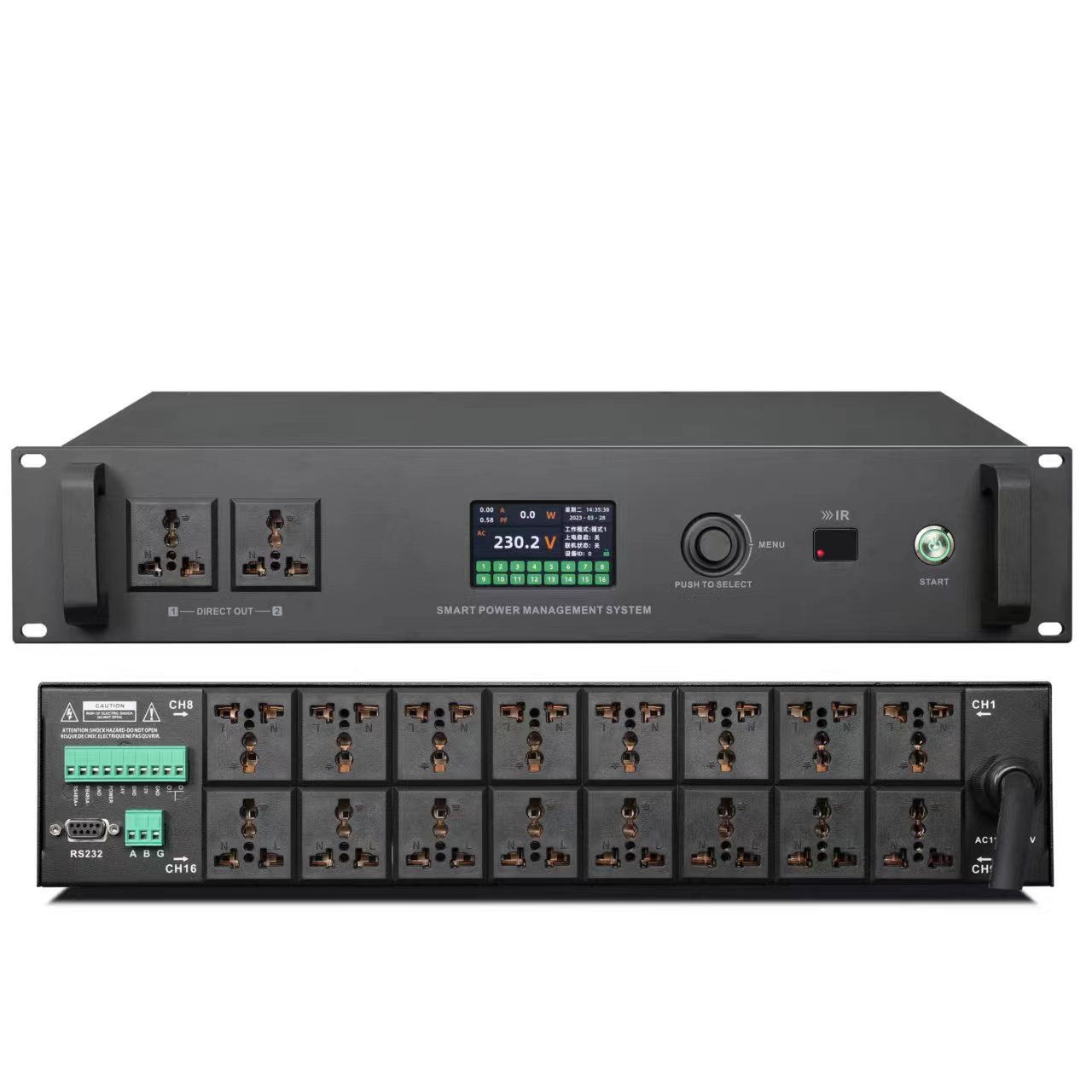

2. The number of channels includes: 8 channels, 10 channels, 12 channels, 14 channels, and 16 channels. The relay of the universal socket is controlled and connected directly to the 2 channels of the universal socket or equipped with an air switch

3. Single power/total power/output current: 2500W/7000W/35A

4. Output power socket specification: Flame retardant ABS material, can withstand a maximum current of 13A, made of phosphorous copper material, standard universal socket

5. Circuit board specifications: double-sided fiberboard, with main power supply wiring treated with secondary tin and tertiary copper wires

6. Power supply specifications: Built in high-power switching power supply, suitable for global voltage AC90-260V 50-60HZ

7. Main cable specifications: 3 * 4 square cables, with a total length of 1.3 meters (extendable)

8. Opening type: Button type light touch switch, short press to turn on, long press to turn off, with anti misoperation function

9. Friendly human-machine interface for quick setting of all functions

10. Body size: 1.5U length 482MM * width 295MM * height 66MM, 2U length 482MM * width 295MM * height 90MM

11. Functional features:

(1) High definition 3.0 inch digital color screen, intelligent display of important information such as voltage, current, power, power factor, date, time, channel status, working mode, etc.

(2) Equipped with 10 modes for managing programming usage

(3) Configure RS232/485 serial port, support external central control equipment, and selectable baud rate.

(4) Channel opening delay function, adjustable delay of 1-999 seconds for each channel, can be set to close any output channel, supports disorderly opening

(5) Support cascading control of multiple devices, with automatic detection and setting of cascading status

(6) Timer on/off function, built-in clock chip, with 8 sets of timing tasks (on and off as a group) that can be set, and each set of timing has 11 working modes to choose from. There are 8 timed working modes. It can be set according to the date and time, so there is no need for manual operation.

(7) Support panel independent button control for each channel (optional).

(8) Supports undervoltage, overvoltage, (voltage display turns red during protection) and overcurrent protection (current display turns red during protection) functions, providing safer protection for the entire audio and video system

(9) Supports automatic power on start function.

(10) A set of jog switches that can control devices (such as computers) that start up by jog.

(11) 10 sets of device switch scene data saving/calling, scene management application simple and convenient;

(12) Equipped with an external start switch interface.

(13) Equipped with 12V and 24V DC signal start.

(14) Optional power purification function.

(15) Support panel lock function to prevent human error.

(16) Remote control and operation are more convenient.

Applicable location:

Large multimedia conference halls, multifunctional halls, training centers, multimedia classrooms, high-end villas, smart homes, etc.

Project parameters

Rated output voltage: AC220V/50HZ

Controllable power supply: 8 channels, 10 channels, 12 channels, 14 channels, 16 channels, plus 2 direct outputs

Delay time for each action: 2 seconds (maximum 999 seconds)

Power supply: AC220V/50HZ

Status display: 3-inch high-definition color screen, real-time display of voltage, current, power, power factor, channel switch indication, protection indication

Single channel rated output current: 13A

Rated total output current: 35A

Timer function: 8 sets

Remote control function: Yes

External control: RS232/485, DC 12V, 24V voltage control signal
