There are 3 models of QG series mixers:

QG12

QG16

QG24

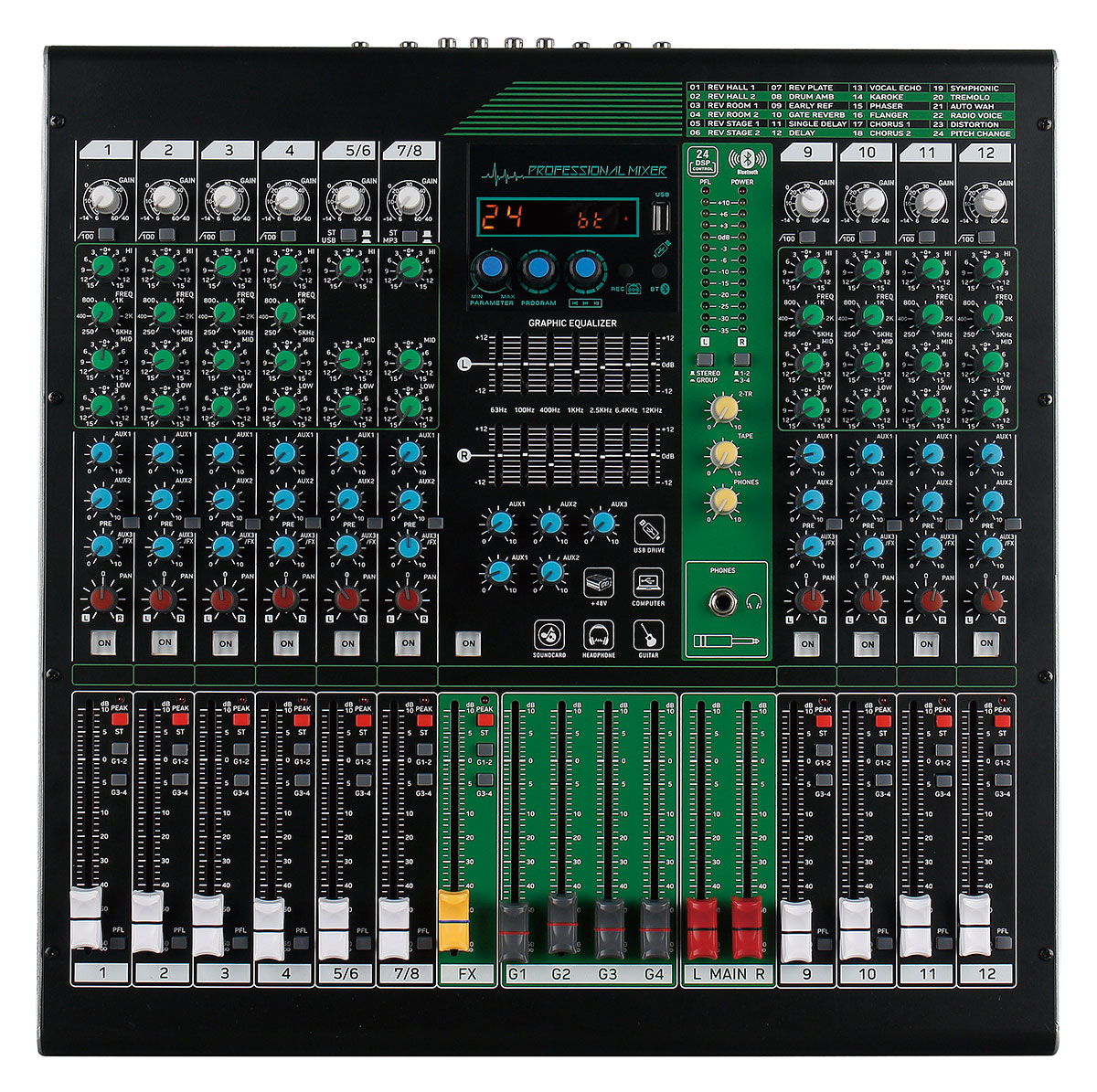

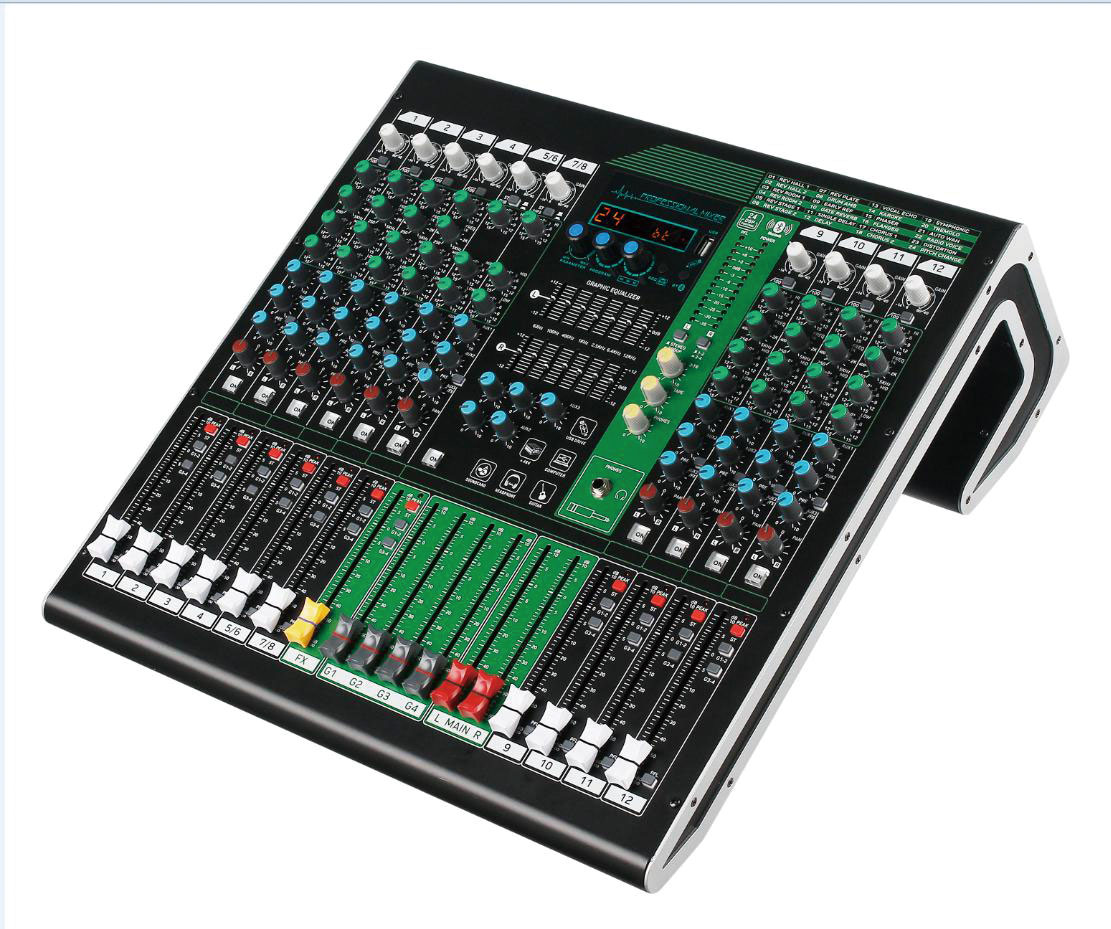

QG12

●12-channel design, 8 MIC mono channels + 2 stereo inputs

●Mono channel 100Hz low frequency attenuation switch (high pass filter)

●3-band parametric equalization for each channel, mono channel with frequency sweep

●4 auxiliary group outputs, 2 pre-fader foldbacks, 1 post-fader auxiliary, 1 post-fader effect

●3 groups of AUX bus auxiliary outputs (including EFF)

●Built-in 24 kinds of DSP digital effectors

●Built-in USB player, MP3 playback, USB direct recording

●Built-in Bluetooth 5.0 for reception and playback

●USB audio sound card (connected to computer) transmits the sound played by the computer to the mixer

●Built-in 48V phantom power supply, each channel has an independent switch

Main output dual 7-band stereo graphic equalizer

●USB can be switched with one channel of stereo sound, and USB can be adjusted independently

●MP3 can be switched with one stereo channel, MP3 can be adjusted independently

●Each input channel has ON switch and PEL headphone switch

●12-segment precise three-color LED level lights display signal status

●Smooth high-quality 100MM stroke fader

●Dimensions L×W×H (length, width and height): 440*460*145 (mm)

●Net weight: 7.5KG

Technical Parameters:

●Input sensitivity: microphone microphone: -60dB

●Stereo channel input: -40dB

●Effect send Echo send: -20dB

●Effect return Echo back: -20dB

●Low frequency: ±15dB/60HZ

●Max output level: 20dBm

●Total harmonic distortion: 0.02%@ 0dB1KHz

●Frequency response: 20Hz~20Kz

●Power output power: 30w

●Power supply voltage: 100V-240V/50Hz

-----------------------------------------------

QG16

●16-channel design, 12 MIC mono channels + 2 stereo inputs

●Mono channel 100Hz low frequency attenuation switch (high pass filter)

●3-band parametric equalization for each channel, mono channel with frequency sweep

●4 auxiliary group outputs, 2 pre-fader foldbacks, 1 post-fader auxiliary, 1 post-fader effect

●3 groups of AUX bus auxiliary outputs (including EFF) ●Built-in 24 kinds of DSP digital effects

●Built-in USB player, MP3 playback, USB direct recording

●Built-in Bluetooth 5.0 for reception and playback

●USB audio sound card (connected to computer) transmits the sound played by the computer to the mixer

●Built-in 48V phantom power supply, each channel has an independent switch

Main output dual 7-band stereo graphic equalizer

●USB can be switched with one channel of stereo sound, and USB can be adjusted independently

●MP3 can be switched with one stereo channel, MP3 can be adjusted independently

●Each input channel has ON switch and PEL headphone switch

●12-segment precise three-color LED level lights display signal status

●Smooth high-quality 100MM stroke fader

●Dimensions L×W×H (length, width and height): 454*460*145 (mm)

●Net weight: 9.1KG

Technical Parameters:

●Input sensitivity: microphone microphone: -60dB

●Stereo channel input: -40dB

●Effect send Echo send: -20dB

●Effect return Echo back: -20dB

●Low frequency: ±15dB/60HZ

●Max output level: 20dBm

●Total harmonic distortion: 0.02%@ 0dB1KHz

●Frequency response: 20Hz~20Kz

●Power output power: 30w

●Power supply voltage: 100V-240V/50Hz

----------------------------------

QG24

●24-channel design, 20 MIC mono channels + 2 stereo inputs

●Mono channel 100Hz low frequency attenuation switch (high pass filter)

●3-band parametric equalization for each channel, mono channel with frequency sweep

●4 auxiliary group outputs, 2 pre-fader foldbacks, 1 post-fader auxiliary, 1 post-fader effect

●3 groups of AUX bus auxiliary outputs (including EFF)

●Built-in 24 kinds of DSP digital effectors

●Built-in USB player, MP3 playback, USB direct recording

●Built-in Bluetooth 5.0 for reception and playback

●USB audio sound card (connected to computer) transmits the sound played by the computer to the mixer

●Built-in 48V phantom power supply, each channel has an independent switch

Main output dual 7-band stereo graphic equalizer

●USB can be switched with one channel of stereo sound, and USB can be adjusted independently

●MP3 can be switched with one stereo channel, MP3 can be adjusted independently

●Each input channel has ON switch and PEL headphone switch

●12-segment precise three-color LED level lights display signal status

●Smooth high-quality 100MM stroke fader

●Dimensions L×W×H (length, width and height): 755*460*145 (mm)

●Net weight: 12.3KG

Technical Parameters:

●Input sensitivity: microphone microphone: -60dB

●Stereo channel input: -40dB

●Effect send Echo send: -20dB

●Effect return Echo back: -20dB

●Low frequency: ±15dB/60HZ

●Max output level: 20dBm

●Total harmonic distortion: 0.02%@ 0dB1KHz

●Frequency response: 20Hz~20Kz

●Power output power: 30w

●Power supply voltage: 100V-240V/50Hz
