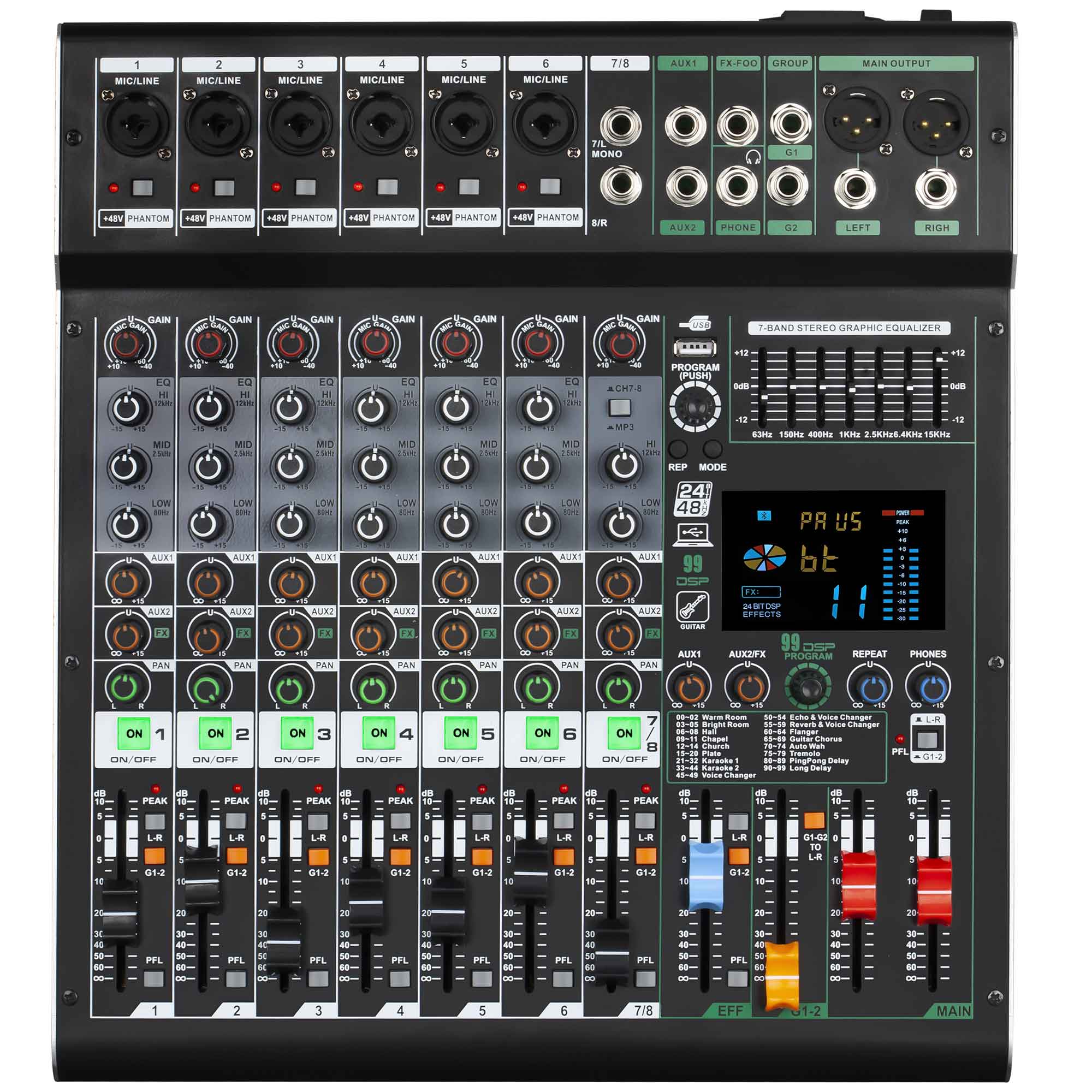

T8 mixer

1 8-channel design, 6 MIC mono channels + 1 stereo input

2 mono channel 100Hz low frequency attenuation switch (high pass filter)

3 3 bands per channel, parametric equalization, mono with frequency sweep

4 1 set of auxiliary group output, 1 set of stereo output, 2 sets of AUX bus auxiliary output (including EFF)

5. Built-in 99 kinds of DSP digital effects, built-in USB player, MP3 playback, USB direct plug-in recording, built-in Bluetooth 5.0 reception and playback, USB audio sound card (connected to the computer) to transmit the sound played by the computer to the mixer

6 Built-in 48V phantom power supply, each channel has independent switch, main output 7-band equalizer, USB can be switched with one stereo, USB can be adjusted independently, MP3 can be switched with one stereo, MP3 can be adjusted independently

7 Each input channel has ON switch, PEL headphone switch, 12-segment precise three-color LED level light to display signal status, smooth and high-quality 100MM stroke fader

8 Product size: length 330mm×width 367mm×height 80mm

9 Product weight: 3.3Kg

10 Color box packaging size: length 375mm×width 140mm×height 430mm

11 Total weight (including packaging): 3.8Kg

Technical Parameters:

12 input channels: 8 channels

13 Number of outputs: 2

14 Phantom power: 48V

15 Signal-to-noise ratio:>90dB

16 Total harmonic distortion: 0.03%

17 Maximum input level: 22dB

18 Input sensitivity MIC input: 60dB LINE input: 20dB

19 Balance: Total output seven-segment graphic equalization adjustable height: 12KHz/±15dB

     Medium: 250Hz/-8KHz/+15dB Low: 80Hz/±15dB

20 Frequency response: 20Hz-20KHz (+3dB)

21 Auxiliary send output level: 0dBu

22 line input: gain range 10dB to +20dB

23 Power supply: 100-240V6A250V

24 Maximum input level of headphones: 19dBu/150Ω (+25dBm)

25 Maximum output level: 19dBu (1kwTHD=0.5%)

-------------------------------------------------------------------

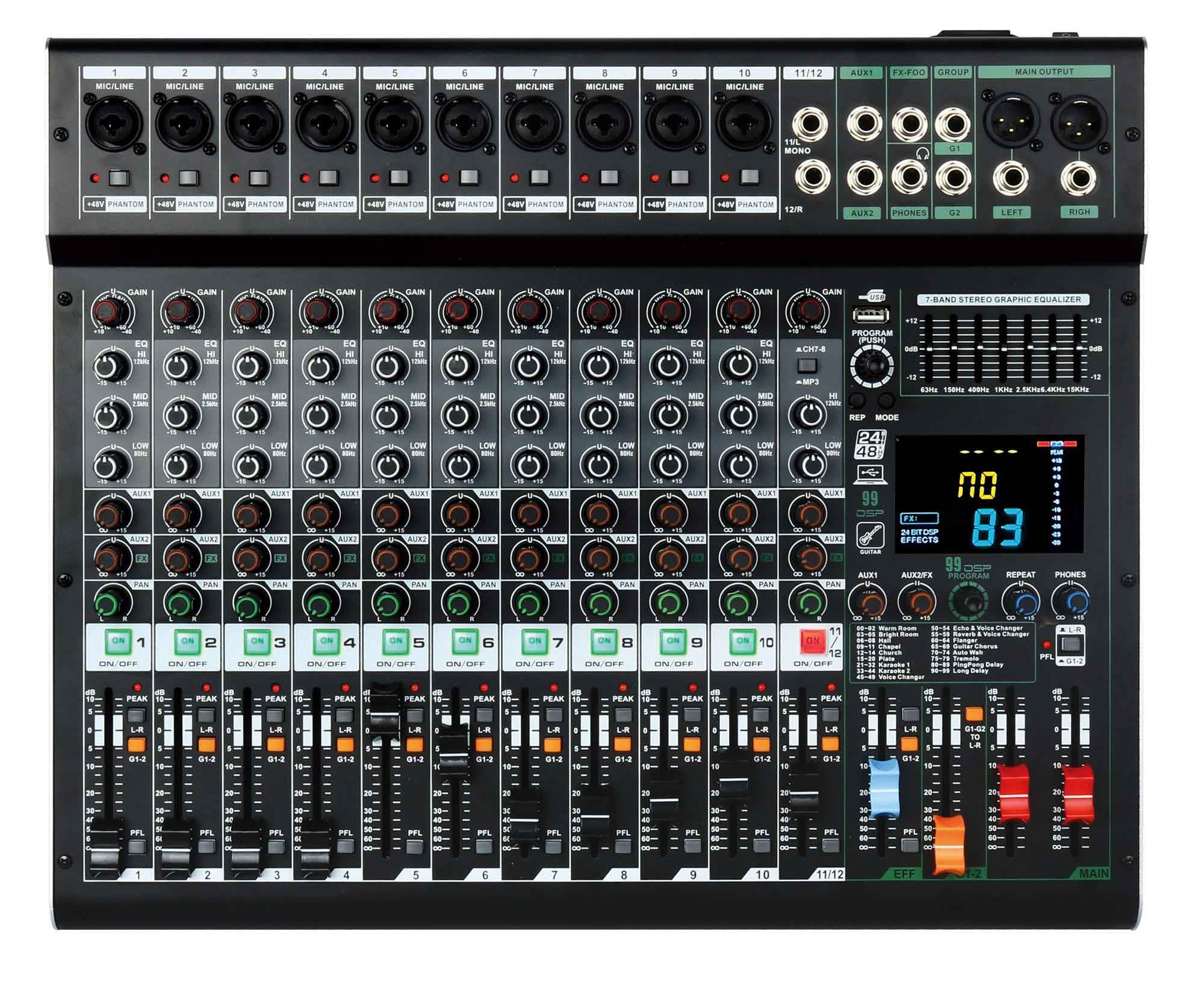

  T 12

1 12-channel design, 10 MIC mono channels + 1 stereo input

2 mono channel 100Hz low frequency attenuation switch (high pass filter)

3 3 bands per channel, parametric equalization, mono with frequency sweep

4 1 set of auxiliary group output, 1 set of stereo output, 2 sets of AUX bus auxiliary output (including EFF)

5. Built-in 99 kinds of DSP digital effects, built-in USB player, MP3 playback, USB direct plug-in recording, built-in Bluetooth 5.0 reception and playback, USB audio sound card (connected to the computer) to transmit the sound played by the computer to the mixer

6 Built-in 48V phantom power supply, each channel has independent switch, main output 7-band equalizer, USB can be switched with one stereo, USB can be adjusted independently, MP3 can be switched with one stereo, MP3 can be adjusted independently

7 Each input channel has ON switch, PEL headphone switch, 12-segment precise three-color LED level light to display signal status, smooth and high-quality 100MM stroke fader

8 Product size: length 450mm×width 380mm×height 80mm

9 Product weight: 4.2Kg

10 Packing size of cowhide box: length 485mm×width 150mm×height 440mm

11 Total weight (including packaging): 5.2Kg

Technical Parameters:

12 input channels: 12 channels

13 Number of outputs: 2

14 Phantom power: 48V

15 Signal-to-noise ratio:>90dB

16 Total harmonic distortion: 0.03%

17 Maximum input level: 22dB

18 Input sensitivity MIC input: 60dB LINE input: 20dB

19 Balance: Total output seven-segment graphic equalization adjustable High: 12KHz/±15dB

     Medium: 250Hz/-8KHz/+15dB Low: 80Hz/±15dB

20 Frequency response: 20Hz-20KHz (+3dB)

21 Auxiliary send output level: 0dBu

22 line input: gain range 10dB to +20dB

23 Power supply: 100-240V6A250V

24 Maximum input level of headphones: 19dBu/150Ω (+25dBm)

25 Maximum output level: 19dBu (1kwTHD=0.5%)

-------------------------------------------------- ---

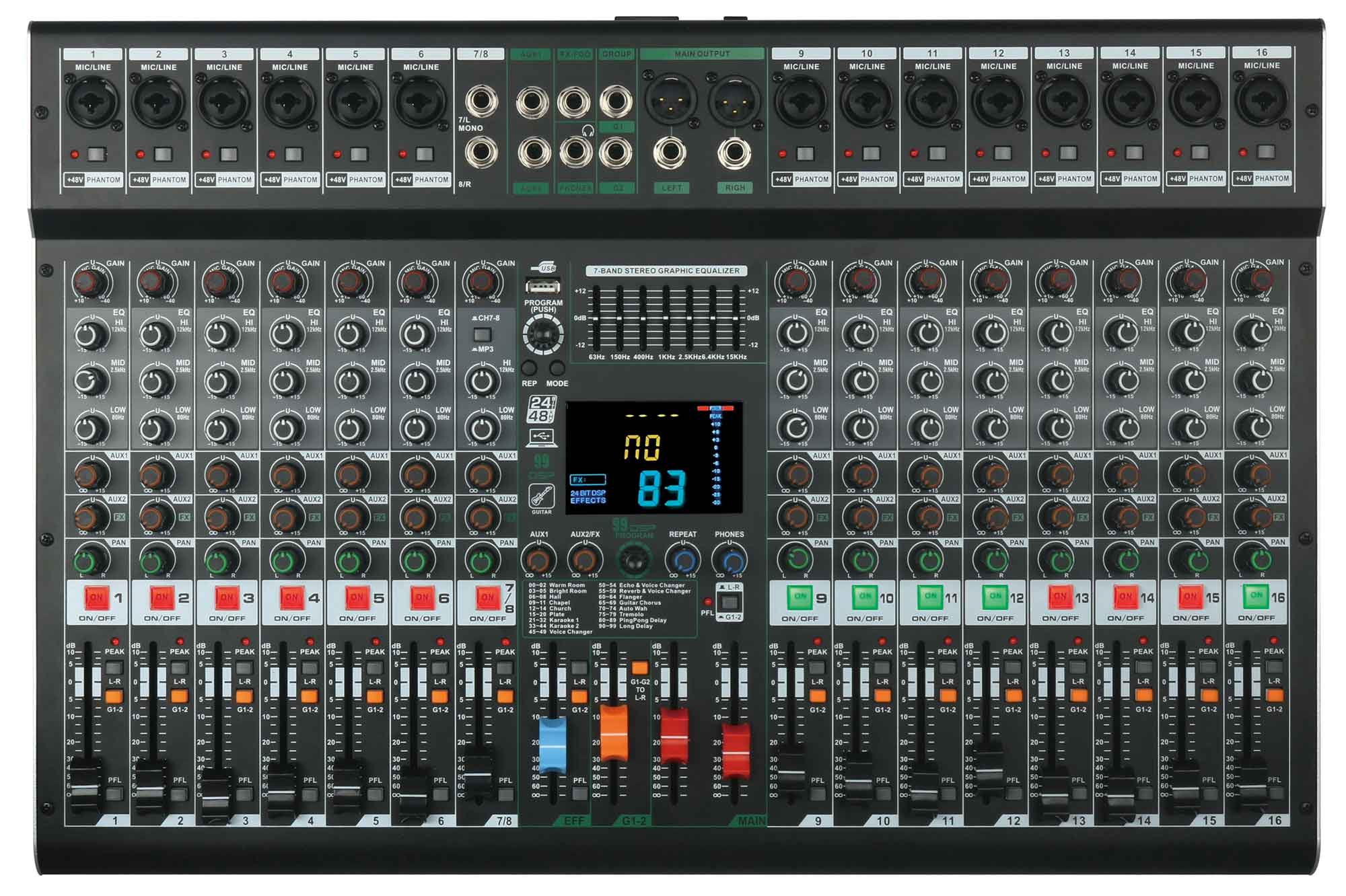

T16

1 16-channel design, 14 MIC mono channels + 1 stereo input

2 mono channel 100Hz low frequency attenuation switch (high pass filter)

3 3 bands per channel, parametric equalization, mono with frequency sweep

4 1 set of auxiliary group output, 1 set of stereo output, 2 sets of AUX bus auxiliary output (including EFF)

5. Built-in 99 kinds of DSP digital effects, built-in USB player, MP3 playback, USB direct plug-in recording, built-in Bluetooth 5.0 reception and playback, USB audio sound card (connected to the computer) to transmit the sound played by the computer to the mixer

6 Built-in 48V phantom power supply, each channel has independent switch, main output 7-band equalizer, USB can be switched with one stereo, USB can be adjusted independently, MP3 can be switched with one stereo, MP3 can be adjusted independently

7 Each input channel has ON switch, PEL headphone switch, 12-segment precise three-color LED level light to display signal status, smooth and high-quality 100MM stroke fader

8 Product size: length 565mm×width 380mm×height 80mm

9 Product weight: 5.1Kg

10 Packing size of cowhide box: length 600mm×width 150mm×height 440mm

11 Total weight (including packaging): 6.2Kg

Technical Parameters:

12 input channels: 16 channels

13 Number of outputs: 2

14 Phantom power: 48V

15 Signal-to-noise ratio:>90dB

16 Total harmonic distortion: 0.03%

17 Maximum input level: 22dB

18 Input sensitivity MIC input: 60dB LINE input: 20dB

19 Balance: Total output seven-segment graphic equalization adjustable High: 12KHz/±15dB

     Medium: 250Hz/-8KHz/+15dB Low: 80Hz/±15dB

20 Frequency response: 20Hz-20KHz (+3dB)

21 Auxiliary send output level: 0dBu

22 line input: gain range 10dB to +20dB

23 Power supply: 100-240V6A250V

24 Maximum input level of headphones: 19dBu/150Ω (+25dBm)

25 Maximum output level: 19dBu (1kwTHD=0.5%)
